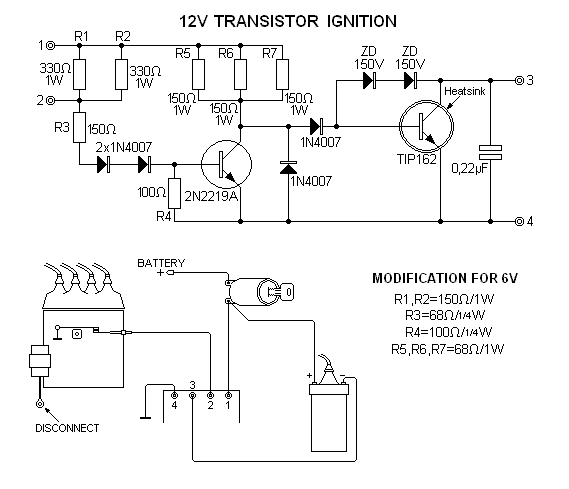

The schematic to the left was taken from the website Electronics For All and is a transistor schematic for a vehicle ignition. This was used as a base to start the schematic for the CowCatcher 3000.
This schematic is the first attempt of the fence charger circuit replacing the TIP162 transistor with an IRF9530 p-channel transistor.
